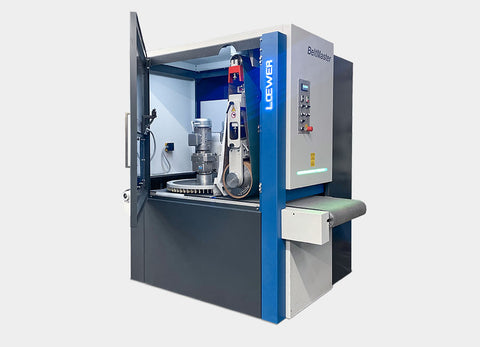

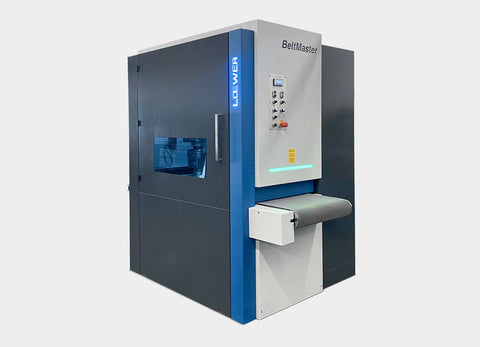

LOEWER BeltMaster TbD 600

Flame-cut and plasma-cut parts can have larger thickness tolerances as well as distortion. The BeltMaster 600 was developed especially for such applications.The heart of the BeltMaster 600 is the patented TwinBelt unit. An endless abrasive belt runs over a very soft contact roller, resulting in a lot of grinding pressure on the edges with little pressure on the workpiece surfaces. An additional second belt running on the inside increases the pressure on the edges and protects the abrasive belt against punctures. The system achieves the best deburring results with high tolerance compensation and thus has significant advantages over conventional abrasive belt units.

• Very soft contact roller, a lot of grinding pressure on the edges with little pressure on the surfaces
• Additional pressure belt for more edge pressure while maintaining flexibility and protecting the sanding belt
• Floating head device (air cushion) for compensation of distortion up to 6mm
• 2500mm long endless abrasive belt for cooler operation and long tool life
• Pneumatic abrasive belt tensioning for belt change within seconds
• Abrasive belt oscillation for better deburring
• Large magnet under the feed belt for holding small magnetic workpieces
